▶▶▶ PRODUCT Low Pressure Sensor ▶▶▶

LPX/LPM5000           LPX/LPM9000

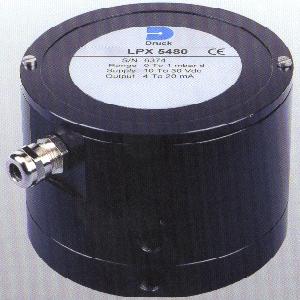

Low Pressure Sensor ( Model:LPX/LPM5000)




* Model : LPX/LPM5000
압력 범위 :  +/-0.5mBar to 10Bar
공급 전압 : 10 to 30V DC
출     력 : 0 to 10V DC or +/- 5V DC(4 wires)
               4 to 20mA (2 wires)
정      도 : +/-0.25% BSL
사용 온도 : -30 to 80 Deg C
압력 연결구 : G1/8 female
전기 연결법 : Cage type spring terminal
본체 재질 : Black anodised aluminium
* Options
Mounting Bracket
Square Root Extraction 4-20mA only
